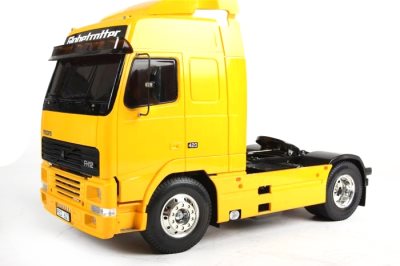

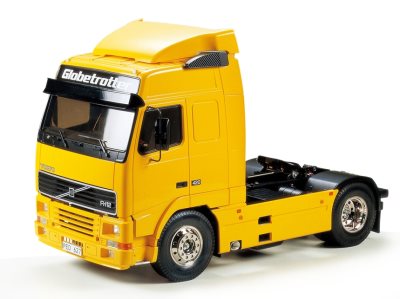

The FH series was released in the fall of 1993 and became Volvo's primary truck. The following year, it was awarded the prestigious "Truck of the Year" title. It's huge 12-liter inter cooled turbo diesel engine is known as the "Euro 2", and is the result of state-of-the-art engineering technology.
Specifications
Scale 1:14
Length: 614mm, Width: 190mm, Wheelbase 447mm
The FH series was released in the fall of 1993 and became Volvo's primary truck. The following year, it was awarded the prestigious "Truck of the Year" title. It's huge 12-liter inter cooled turbo diesel engine is known as the "Euro 2", and is the result of state-of-the-art engineering technology.
Specification
•Scale : 1/14
•Construction type : assembly kit
•Terrain use : on-road
•Drive-train : 2-axle semi
•Drive type : 3-speed
•Drive line : solid axle
•Differential type : gear
•Suspension : leaf spring
•Steering mechanism : bell-crank
•Shock damper : friction damper
•Shock damper material : aluminum
•Tire type : rubber
•Tire tread : radial
•Body material : ABS Plastic
•Chassis material : aluminum
•Electronic Speed Control (ESC) : not included
•ESC model : n/a
•LED Light buckets : yes
•LED lights : no
•Motor : 540-brushed type
•Bearings : metal and plastic bushings
•Adjustable camber : fixed
•Adjustable toe angles : front only
•Adjustable ground clearance : fixed
•Adjustable gear ratio : fixed
•Adjustable wheelbase : fixed
•Adjustable track width : fixed
•Adjustable shock angle : fixed
•Special feature 1 : Length: 17.32 inches (440mm) Width: 7.40 inches (188mm)
•Special feature 2 : Wheelbase: 10.71 inches (272mm)
•Special feature 3 : Front Tread: 6.14 inches (156mm) Rear Tread: 5.43 inches (138mm)
•Special feature 4 : Weight: 5.07 lbs. (2300g)
•Special feature 5 : Chassis: Aluminum ladder
•Special feature 6 : Gear Ratio: 10.6:1 - With the 3-speed gearbox, 10.6:1, 17.7:1 and 32.4:1 are possible
•Special feature 7 : Wheels & Tires: Chrome/Radial
•Requires A : 7.2 battery & charger
•Requires B : 4-channel radio gear
•Requires C : TS plastic model paint
•Requires D : electronic speed control
Important Radio Information
Please be advised when choosing a radio for your Tamiya Semi, you need to figure out what your final goal will be. Your choice is between an Analog or Digital trimmed 4ch radio.
If you plan on using your semi without an MFU (Multi-Function Unit), you can use either type radio.
If you even think you might use an Tamiya MFU on your semi, please only use a Analog radio.
Digital trim radios "WILL NOT" work with Tamiya MFU units.
Q. How Can I tell if my radio is Analog or digital trim?
Analog - Radio Trims slide from one end to the other
Digital - Radio Trims are only switches and click in either direction, No Sliding
