The JB23 is a variant of the Suzuki Jimny, long-selling 4WD model in the Japanese 'kei' class of small cars. Released to coincide with new 'kei' regulations effective October 1998, it inherited the Jimny's trademark tough ladder frame and rigid suspension setup, combining it with a new rounded body. This model accurately captures the JB23 form with a durable polycarbonate body plus separate parts to recreate side mirrors, and stickers depicting front grille and lights.
MF-01X - Compact 4WD At Home on a Range of Surfaces

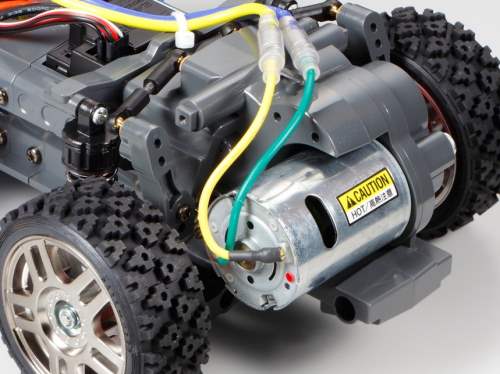

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included
Length: 347mm, Width: 170mm, Height: 215mm
Wheelbase: 225mm (M)
Tire Width/Diameter (Front & Rear): 27/69mm
Tread (Front & Rear): 138mm
Monocoque Frame
Shaft-Driven 4WD
3-Bevel Differential Gears
3-Piece Steering Tie-Rod

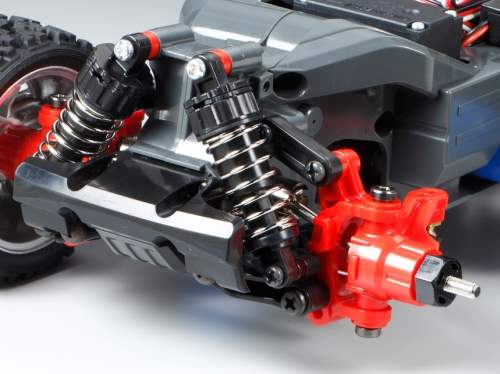

4-Wheel Double Wishbone Suspension
Front & Rear Friction Dampers
Gear Ratio = 9.5:1
Type 540 Motor
Electronic Speed Controller
