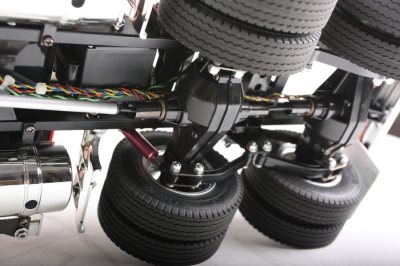

The King Hauler is a scale tractor truck with a realistic ladder frame and a 3-speed gearbox. The suspension is equipped with solid axles with leaf springs just like full scale trucks.
Specifications
Scale 1:14
Length: 630mm, Width: 186mm, Wheelbase 447mm
The King Hauler is a scale tractor truck with a realistic ladder frame and a 3-speed gearbox. The suspension is equipped with solid axles with leaf springs just like full scale trucks.
Specification
•Scale : 1/14
•Construction type : assembly kit
•Terrain use : on-road
•Drive-train : 2-axle semi
•Drive type : 3-speed
•Drive line : solid axle
•Differential type : gear
•Suspension : leaf spring
•Steering mechanism : bell-crank
•Shock damper : friction damper
•Shock damper material : aluminum
•Tire type : rubber
•Tire tread : radial
•Body material : ABS Plastic
•Chassis material : aluminum
•Electronic Speed Control (ESC) : not included
•ESC model : n/a
•LED Light buckets : yes
•LED lights : no
•Motor : 540-brushed type
•Bearings : metal and plastic bushings
•Adjustable camber : fixed
•Adjustable toe angles : fixed
•Adjustable ground clearance : fixed
•Adjustable gear ratio : fixed
•Adjustable wheelbase : fixed
•Adjustable track width : fixed
•Adjustable shock angle : fixed
•Special feature 1 : Total length: 630mm Total width: 186mm
•Special feature 2 : Wheelbase: 447mm
•Special feature 3 : Tread F/R: 156/138mm
•Special feature 4 : Tire Width: F/R both 22mm
•Special feature 5 : Diameter: F/R both 83mm
•Special feature 6 : Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
•Special feature 7 : Weight Fully-Equipped: about 3,1kg (without multi function unit)
•Special feature 8 : Clearance: 19mm
•Requires A : 7.2 battery & charger
•Requires B : 4-channel radio gear
•Requires C : electronic speed control
•Requires D : TS plastic model paint
Important Radio Information
Please be advised when choosing a radio for your Tamiya Semi, you need to figure out what your final goal will be. Your choice is between an Analog or Digital trimmed 4ch radio.
If you plan on using your semi without an MFU (Multi-Function Unit), you can use either type radio.
If you even think you might use an Tamiya MFU on your semi, please only use a Analog radio.
Digital trim radios "WILL NOT" work with Tamiya MFU units.
Q. How Can I tell if my radio is Analog or digital trim?
Analog - Radio Trims slide from one end to the other
Digital - Radio Trims are only switches and click in either direction, No Sliding
