Panart Armed Pinnace 1800 1:16 Scale Wooden Model Boat Kit.
Lovely scale model of nineteenth century armed cutter. These fast and efficient boats were used, among other duties, as coastguard patrol boats and for night raids into enemy ports.
Specifications:
Scale 1:16
Length 620mm
Height: 457mm
Planking: Triple
Panart Armed Pinnace 1800 1:16 Scale Wooden Model Boat Kit.
This model is an exact reproduction of a 10 meters long armed launch, which was used by the different navies during the 19th century.
These launches were armed with naval guns of different calibre and type; in the bow section a cannon or carronade was installed while in the stern two more light, small cannons were placed to be aimed by hand.
Usually, these boats were employed in coastal patrols or in escort services but, also demonstrated their wartime capacity in surprise actions attacking craft in difficulty or anchored or at roadstead. Due to their remarkable manoeuvrability, they were also in great numbers employed during landing actions, preceeding the main fleet which moved slower and was more vulnerable.
The bow cannon, placed on a wooden structure, attached to the first benches, slid back and forth, recoiling on two slits made on the two carrying guides and was manoeuvred by two forward and aft placed tackles. The marksman occupied himself to raise the cannon while the helmsman was responsible to align the bow at the target.
Mast and sail during the surprise actions were lowered on the benches to proceed and use the oars and to delay as long as possible the interception from the part of the enemy.

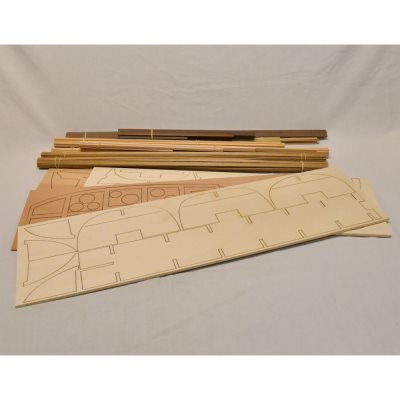

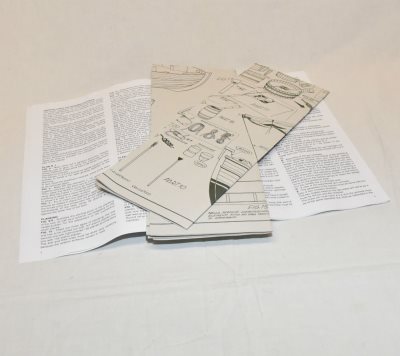

The Panart kit features the following: A triple plank on frame hull construction, building plans with general details English instructions, walnut and lime planking, wooden masts and spars, brass and walnut fittings, Rigging cord and silk flag. All sheet ply sections are laser cut for accuracy.
Sail Cloth is not included.
Specifications:
Scale 1:16
Length 620mm
Height: 457mm
Planking: Triple
The Mantua Model group of Italy is one of the largest model manufacturers in the world. Mantua Model manufacture all types of boat, ship, aircraft and car kits, and are renowned for their wooden model ship kits. Mantua Model manufacture three brands of model boat kits: Mantua, Panart and Sergal.
Panart kits are a brand from Mantua Models. The range includes not only period ships, but more modern vessels and also a selection of open ship boats. The models themselves are superb quality and certainly rate amongst the best within their class. All of the main ply sections, frames keel etc. are laser cut to ensure accuracy. The hulls are double planked with pre-cut keels and frames. Hull planking usually consists of walnut and balsa or lime. The fittings supplied are made from various materials, including brass, walnut, boxwood. The decoration can be either laser engraved wood, cast metal and/or photoetched brass. The castings are formed using the lost wax process to ensure a very detailed finish. Comprehensive plan sheets and build instructions are included.
