This is a special edition kit of the 1/14 R/C Scania R620 6x4 Highline. The kit includes body components that are pre-painted in Tamiya Synthetic Lacquer TS-51 Racing Blue paint. The body is also clear coated with a urethane clear topcoat.
Specifications
Scale 1:14
Length: 520mm, Width: 187mm, Wheelbase 293mm

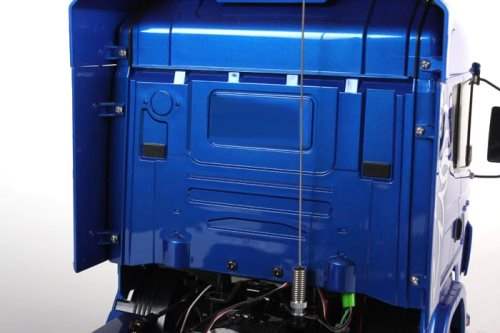

Trucks are essential components of many logistics networks around the world. One such truck which can be seen on the roads carrying large loads is the biggest and most powerful Scania truck, the R620. Tamiya is proud to add this wonderful piece of machinery the R620 6x4 to the 1/14 scale R/C Tractor Truck lineup. This massive tractor truck features 3-axle and is approximately 458mm long. Beautifully reproduced cabin tilts forward separately from the fenders, just like the actual truck. The accurately modeled fenders themselves are removable for realistically depicting a low carrying load. Realistic chassis and suspension further add to the imposing form of this unique model.
Product Specifications
Scale 1/14
Construction type assembly kit
Terrain use on-road
Drive-train 2-axle semi
Drive type 3-speed
Drive line solid axle
Differential type gear
Suspension leaf spring
Steering mechanism bell-crank
Shock damper friction damper
Shock damper material aluminum
Tire type rubber
Tire tread radial
Body material ABS Plastic
Chassis material aluminum
Electronic Speed Control (ESC) not included
ESC model n/a
LED Light buckets yes
LED lights no
Motor 540-brushed type
Bearings metal and plastic bushings
Adjustable camber fixed
Adjustable toe angles fixed
Adjustable ground clearance fixed
Adjustable gear ratio fixed
Adjustable wheelbase fixed
Adjustable track width fixed
Adjustable shock angle fixed
Special feature 1 Length: 520mm Width: 187mm Height: 293mm
Special feature 2 Wheelbase: 272mm
Special feature 3 Tread F/R: 156/138mm
Special feature 4 Tire Width: F/R both 22mm
Special feature 5 Diameter: F/R both 83mm
Special feature 6 Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Requires A 7.2 battery & charger
Requires B 4-channel radio gear
Requires C electronic speed control
Requires D TS plastic model paint
Important Radio Information
Please be advised when choosing a radio for your Tamiya Semi, you need to figure out what your final goal will be. Your choice is between an Analog or Digital trimmed 4ch radio.
If you plan on using your semi without an MFU (Multi-Function Unit), you can use either type radio.
If you even think you might use an Tamiya MFU on your semi, please only use a Analog radio.
Digital trim radios "WILL NOT" work with Tamiya MFU units.
Q. How Can I tell if my radio is Analog or digital trim?
Analog - Radio Trims slide from one end to the other
Digital - Radio Trims are only switches and click in either direction, No Sliding
