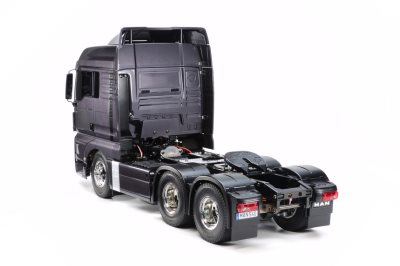

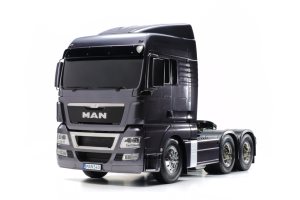

Famed not only for their performance on the road but also used as transporters by Formula One teams, MAN's TGX 26.540 6x4 XLX tractor truck was awarded “The 2008 Truck of the Year.” This award winning vehicle now comes reproduced as a 1/14 scale electric R/C model. The model features a ladder frame chassis with aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Providing this truck with a realistic scale finish are parts which feature two kinds of metal-plating and metal transfers to beautifully depict details such as the front grille's emblem. Furthermore, the chassis features a 3-speed transmission which allows gear shifting while driving via transmitter, with the sound and lighting actions reproduced by a separately available Multi Function Control unit.
Specifications
Scale 1:14
Length: 526mm, Width: 193mm, Wheelbase 237 + 103mm
Famed not only for their performance on the road but also used as transporters by Formula One teams, MAN's TGX 26.540 6x4 XLX tractor truck was awarded “The 2008 Truck of the Year.” This award winning vehicle now comes reproduced as a 1/14 scale electric R/C model. The model features a ladder frame chassis with aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Providing this truck with a realistic scale finish are parts which feature two kinds of metal-plating and metal transfers to beautifully depict details such as the front grille's emblem. Furthermore, the chassis features a 3-speed transmission which allows gear shifting while driving via transmitter, with the sound and lighting actions reproduced by a separately available Multi Function Control unit.
Specification
Length: 526mm, Width: 193mm, Height: 301mm, Weight (without optional parts): Approx. 3.8kg
Wheelbase: 237+103mm
Tread: 156mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle (Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°
Toe Angle: 0°(Front & Rear)
Dampers: Aluminum Dummy Dampers (Front & Rear)
Drivetrain: Rear Double Axle Drive
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff. Gear: 3-bevel diff
Motor: Type 540
Tire Width: 22mm (Front & Rear)
Tire Diameter: 83mm (Front & Rear)
