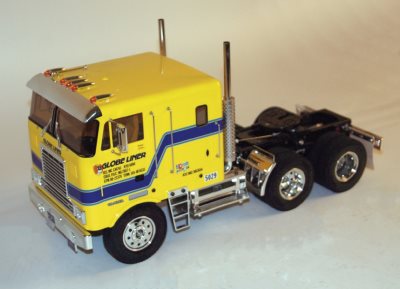

Tamiya has captured the attractive appearance of tractor trucks in a 1/14 scale electric powered "Globe Liner". The rear double axle drive uses rigid propeller shafts for smooth performance
Tamiya has captured the attractive appearance of tractor trucks in a 1/14 scale electric powered "Globe Liner". The rear double axle drive uses rigid propeller shafts for smooth performance
Product Specifications
Scale 1/14
Construction type assembly kit
Terrain use on-road
Drive-train 2-axle semi
Drive type 3-speed
Drive line solid axle
Differential type gear
Suspension leaf spring
Steering mechanism bell-crank
Shock damper friction damper
Shock damper material aluminum
Tire type rubber
Tire tread radial
Body material ABS Plastic
Chassis material aluminum
Electronic Speed Control (ESC) not included
ESC model n/a
LED Light buckets yes
LED lights no
Motor 540-brushed type
Bearings metal and plastic bushings
Adjustable camber fixed
Adjustable toe angles fixed
Adjustable ground clearance fixed
Adjustable gear ratio fixed
Adjustable wheelbase fixed
Adjustable track width fixed
Adjustable shock angle fixed
Special feature 1 Length: 24.17 inches (614mm) Width: 7.48 inches (190mm)
Special feature 2 Wheelbase: 17.60 inches (447mm)
Special feature 3 Tread F/R: 156/138mm
Special feature 4 Tire Width: F/R both 22mm
Special feature 5 Weight: 6.39 lbs. (2900g)
Special feature 6 Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Special feature 7 Wheels & Tires: Chrome/Radial
Requires A 7.2 battery & charger
Requires B 4-channel radio gear
Requires C electronic speed control
Requires D TS plastic model paint
Important Radio Information
Please be advised when choosing a radio for your Tamiya Semi, you need to figure out what your final goal will be. Your choice is between an Analog or Digital trimmed 4ch radio.
If you plan on using your semi without an MFU (Multi-Function Unit), you can use either type radio.
If you even think you might use an Tamiya MFU on your semi, please only use a Analog radio.
Digital trim radios "WILL NOT" work with Tamiya MFU units.
Q. How Can I tell if my radio is Analog or digital trim?
Analog - Radio Trims slide from one end to the other
Digital - Radio Trims are only switches and click in either direction, No Sliding
