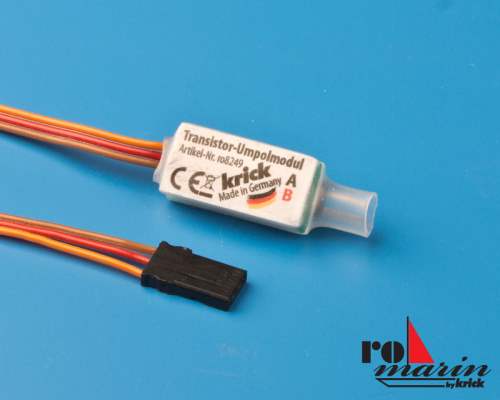

This module is designed to be used with the robbe/Futaba Futaba Multi-Switch 16 Decoder, Multi-Switch-Prop 12+2 Decoder (article no. ro8369/ro8370). It allows you to switch a motor between forward, stop and reverse from the transmitter. Each electric motor can be operated with up to 1 amp of current consumption.
The module is also compatible with older multi-switch decoders (article no. 8884 / F1513) or with other manufacturers' Nautic modules with a small conversion effort on the plug-in system.
Important: The transistor pump module may only be connected to the outputs of the decoder, in which the memory function has been deactivated (observe the decoder instructions). The Maximum current consumption of the motor must be no higher than 1 Amp, as it is supplied with power via the decoder (6-12V).
Funktionen:
Once you have switched on the radio control system you can control the motor by operating the chang-over switch an the Multi-Switch-module (article no. ro8084/ro8101) fitted in the transmitter. The functions are:
Toggle switch forward motor runs forward
Toggle switch at centre motor stopped
Toggle switch back motor runs in reverse
If the Motor runs in the wrong directions, turn the motor connector 180 °.
Specification:
Operating voltage: 6-12V (via Multi-Switch-Decoder)
Switching current: max. 1 Amp
Weight: approx. 4g
Function: Forwards – stop – reverse (for connection to Multi-Switch-Decoder)
