Suitable for auxiliary working systems in model boats, such as the working crane, radar etc.

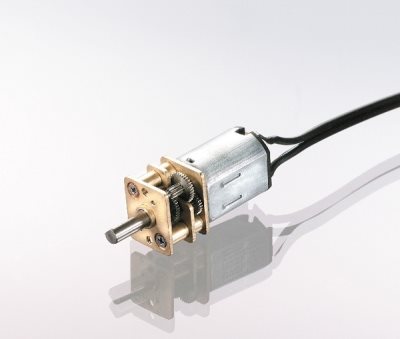

Micro Pile geared motor 1000:1 6V
With its minimal size, this uniquely small geared motor is ideal for driving special functions in ship or truck models. Its large reduction ratio makes it very powerful. This makes it ideal for crane and winch functions. The motor is interference suppressed and fitted with cables. From now on there are also two fixing screws M1,6 attached to the motor. Depending on the thickness of the mounting frame, the screws must be shortened.
Technical Specifications
Operating voltage max. 6V
Voltage range 1.5 - 6V
Current consumption 80 mA (idle)
Max. Continuous load 200 mA
Engine speed per volt 2700 rpm

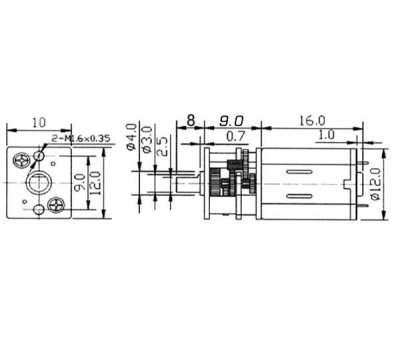

Dimensions 10x12x28 mm
Shaft diameter 3mm
Shaft length 8 mm
