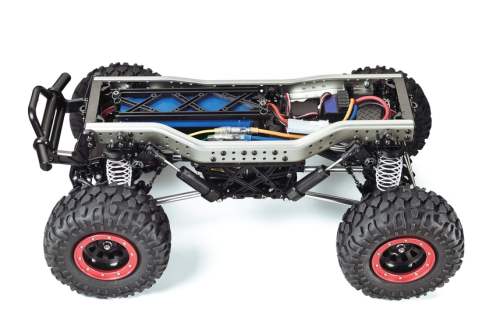

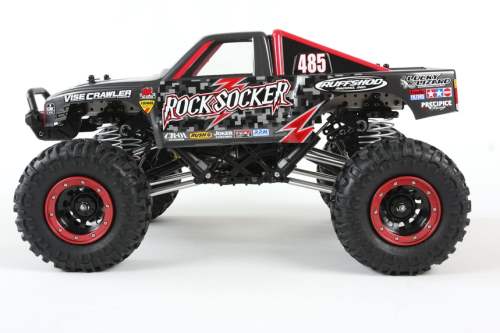

This R/C model assembly kit recreates a rock crawling vehicle like those seen in popular U.S. events where the massive machines vie for time or crawling ability over impossible-looking obstacles. The lightweight yet tough polycarbonate racing truck body comes with a host of marking stickers for decoration. The tough CR-01 chassis is up to the rock crawling challenge, its durable ladder frames featuring aluminum side channels and resin cross members as well as a 4-link rigid suspension with oil dampers and progressive springs. The motor is placed in a central position, with planetary gears enabling low-speed shaft-driven 4WD. Front and rear differentials can be locked. Large-diameter tires feature a tread pattern which extends to the sidewalls, and are fitted to beadlock wheels.
Specifications
Length: 435mm Width: 265mm Height: 215mm
This R/C model assembly kit recreates a rock crawling vehicle like those seen in popular U.S. events where the massive machines vie for time or crawling ability over impossible-looking obstacles. The lightweight yet tough polycarbonate racing truck body comes with a host of marking stickers for decoration. The tough CR-01 chassis is up to the rock crawling challenge, its durable ladder frames featuring aluminum side channels and resin cross members as well as a 4-link rigid suspension with oil dampers and progressive springs. The motor is placed in a central position, with planetary gears enabling low-speed shaft-driven 4WD. Front and rear differentials can be locked. Large-diameter tires feature a tread pattern which extends to the sidewalls, and are fitted to beadlock wheels.
Specifications
Length: 435mm Width: 265mm Height: 215mm
Weight: 2,309g (not including R/C equipment and battery pack)
Wheelbase: 288mm
Tread (Front & Rear): 208mm
Tire Width/Diameter (Front & Rear): 57/125mm

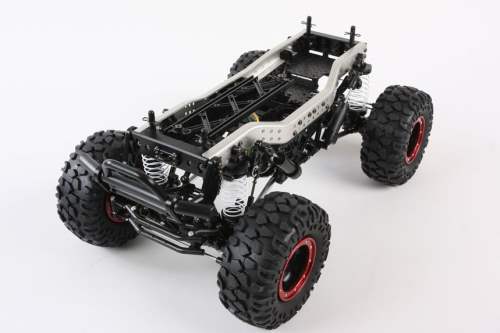

Aluminum & Resin Ladder Frame
Shaft-Driven 4WD
Front/Rear 3-Bevel Differentials (locked as standard)
Planetary Gearbox

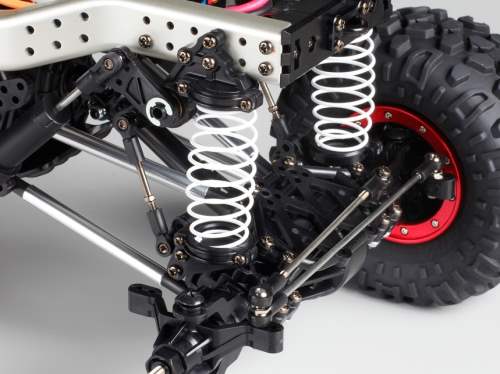

Front/Rear 4-Link Rigid Suspension
Front/Rear CVA Shock Units
Gear Ratio = 32.4:1
Type 540 Motor
Electronic Speed Controller
