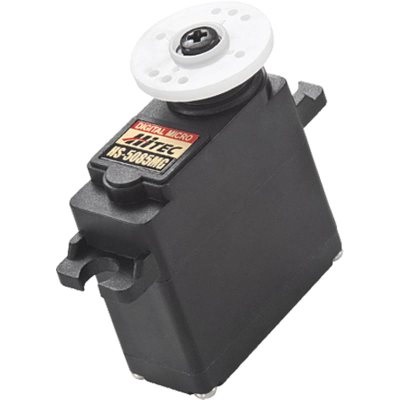

digital version of one of Hitecs most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.
Specifications
Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.17 / 0.13
Torque kg./cm. (4.8V/6.0V): 3.6 / 4.3
Size in Millimeters: 28.96 x 12.95 x 29.97
Weight grams: 21.83
Advanced Servo Specifications
Control System: +Pulse Width Control 1500usec Neutral
Operating Voltage Range: 4.8V to 6.0V
Operating Temperature Range: -20í to +60í (-4íF to +140íF)
Idle Current: 3mA
No Load Running Current (4.8V/6.0V): 230mA/60í / 290mA/60í
Stall Current (4.8V/6.0V): 1,700mA / 2,150mA
Dead Band Width: 2usec
Potentiometer Type: 2 Slider/Direct Drive
Connector Wire Length: 250mm (9.84in)
Connector Wire Gauge: 28AWG
