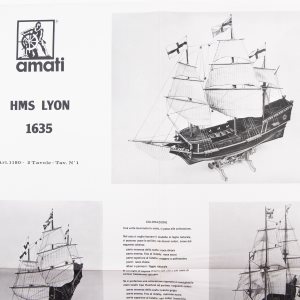

Plan Set for the HMS Lyon - English 5th Rate 1635 420mm
Amati Plans
The same plans that are included with the Amati kits. Where originally supplied the English language instruction booklets from the kits are also included, however not all models have them.
An experienced builder can use these plans to construct a scratchbuilt model of the ship as the majority of plans include the frame profiles in addition to the hull plans, general arrangement details, mast and rigging plans.
